Lecture 11: Basics of LLM Tool Use and The Road to Today’s Agents

rlhfbook.com

Nathan Lambert

Course on RLHF and post-training. Chapter 13.

What are the limitations of model weights alone?

Two asks, two failure modes

User

Who is the president today?

User

Move all the arXiv papers in my downloads folder to my ~/research/ directory with names indicating the date of the paper.

The first fails on the knowledge cutoff – but it is one search query away.

The second, the weights cannot even attempt: it requires acting on the world, not describing it.

Tool use is what closes both gaps. It started by addressing structural limitations in LLMs and grew into the central way to push performance. Tool use is a trained skill – everything in this course (SFT, preference tuning, RL) applies to it.

What an “LLM” is has changed

An LLM today is: model weights + tools + harness

Model weights – the trained network: foundation of knowledge, reasoning, style.
Tools – the actions the model can request: search, code execution, file edits, APIs.
Harness – the software loop around the weights that executes those requests and feeds the results back into the context.

LLMs are now systems and this lecture is about the transition from static weights to today.

Where we are today

Tool use started as “call a calculator.” It was implemented to help with hard multiple-choice questions and code execution. It is now used in…

Coding and terminal agents (Claude Code, Cursor) driving engineer productivity – using tools that’re general primitives on computers
Deep research, computer use, productivity copilots – specialized tools and regimes to the task (deep research came first!)
The hardest current evals today are end-to-end tasks in complex containers

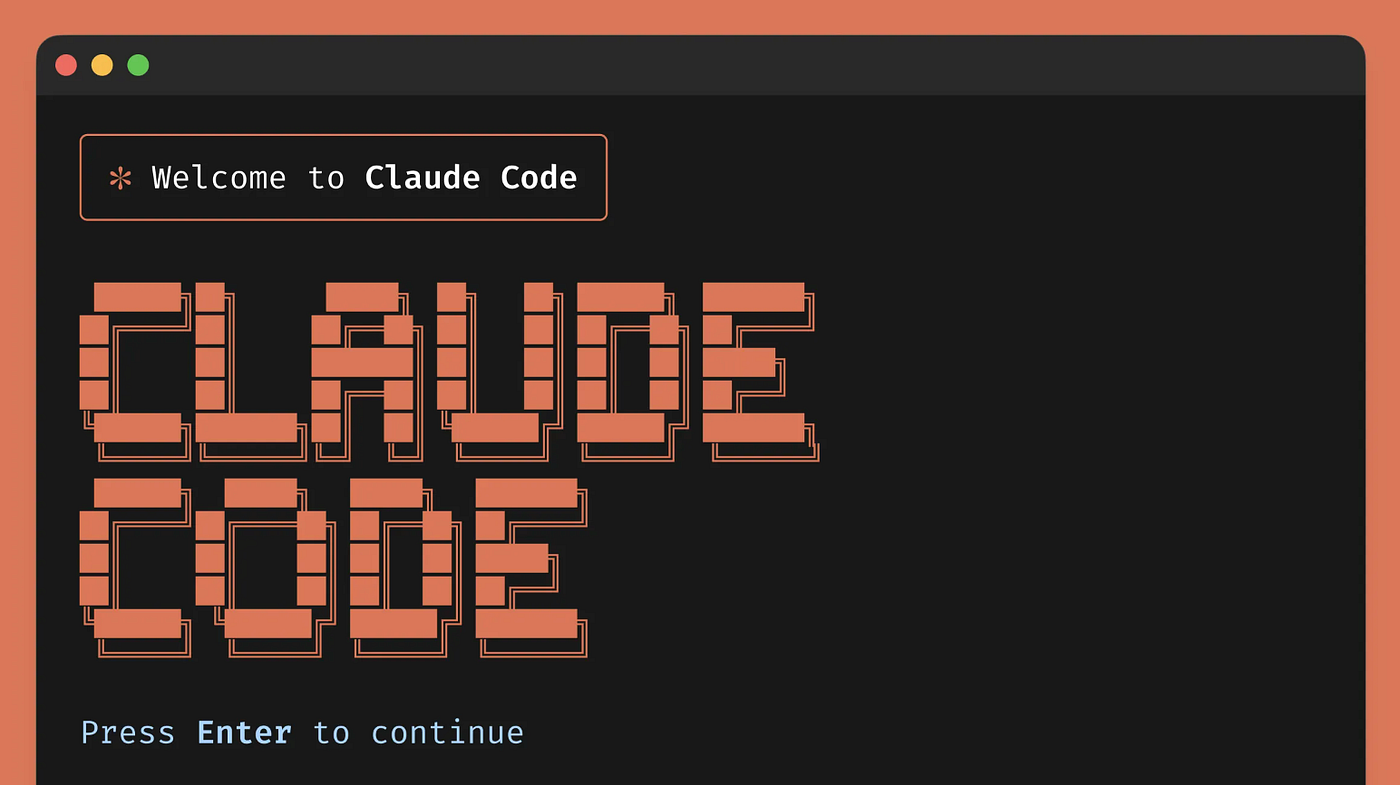

A coding agent at work in the terminal: many chained tool calls -- reading files, editing, running tests -- inside one user turn. — A coding agent at work in the terminal: many chained tool calls – reading files, editing, running tests – inside one user turn.

Anthropic, 2025; Merrill et al., 2026

This lecture

Chapter 13 covers the mechanics of tool use. The last third of today goes beyond the book content with a bit of recent work on tool use and RL at scale.

The plan

Basics & history – why models need tools
The infra basics – interleaved generation, MCP, harnesses, implementation trade-offs
Training at scale – tool-use RL and why it’s hard

Quick pause for YouTube: How’d you end up here?

Are you following the whole course, or did you come for just this video (search, algo, etc.)?

Part 1: Why language models need tools

Three terms people have conflated

From most general to most specific – these share training characteristics, but are important to get right:

Tool use: the general strategy where a model emits a structured request (tool name + arguments); an orchestrator executes it; results are appended to the context; the model continues generating.
Function calling: a specific format of tool use where arguments must conform to a declared schema (usually JSON Schema for APIs), enabling reliable parsing and validation.
Code execution: a special case where the tool is a code interpreter – the most general tool of all. Code inputs, execution outputs.

Escaping probabilistic generation – an example tool-use task

Task: Print \pi to 50 digits – without reciting it from memory (parameters) and risking hallucination.

The model writes the program; the interpreter provides the answer. Tools let models remove some of the stochastic elements of “stochastic parrots.”

... the model is mid-generation, sampling tokens ...

<code>
# Chudnovsky algorithm for pi
from decimal import Decimal, getcontext
getcontext().prec = 60
C = 426880 * Decimal(10005).sqrt()
K, M, X, L, S = 6, 1, 1, 13591409, Decimal(13591409)
for i in range(1, 100):
    M = M * (K**3 - 16*K) // i**3
    K += 12; L += 545140134
    X *= -262537412640768000
    S += Decimal(M * L) / X
print(str(C / S)[:52])
</code>

<output>
3.14159265358979323846264338327950288419716939937510
</output>

... the output is now in context; generation continues ...

A short history of models using tools

2015–2020, precursors: Neural Programmer-Interpreters execute programs with neural networks (Reed & De Freitas, 2016); retrieval augmentation pulls in outside knowledge (Lewis et al., 2020)
2021: WebGPT browses the web, trained with human feedback (Nakano et al., 2021)
2022: TALM bootstraps tool-augmented training data (Parisi et al., 2022); PAL offloads computation to Python (Gao et al., 2023); ReAct interleaves reasoning and actions (Yao et al., 2023)
2023: Toolformer teaches itself APIs w/ synthetic data (Schick et al., 2023); Gorilla scales to 1,645 APIs (Patil et al., 2024); ToolLLM to 16,000+ (Qin et al., 2024); OpenAI ships function calling in the API and Code Interpreter in ChatGPT
2024: Model Context Protocol acts as some standardization (Anthropic, 2024)
2025: o3 makes multistep tool calls inside its reasoning (OpenAI, 2025)
2026: terminal and coding agents become the frontier of post-training (Merrill et al., 2026)

Years on the left are when the work first appeared (arXiv); citation years in parentheses are the official publication date, so some lag by a year.

ReAct: Reasoning and acting are one generation

“…reasoning traces help the model induce, track, and update action plans as well as handle exceptions, while actions allow it to interface with and gather additional information from external sources such as knowledge bases or environments.”

Before ReAct, reasoning (chain-of-thought) and acting (tool calls) were separate literatures. Interleaving them in one token stream is the pattern every modern agent still uses – o3’s tool-calls-inside-thinking is this idea, scaled up with RL.

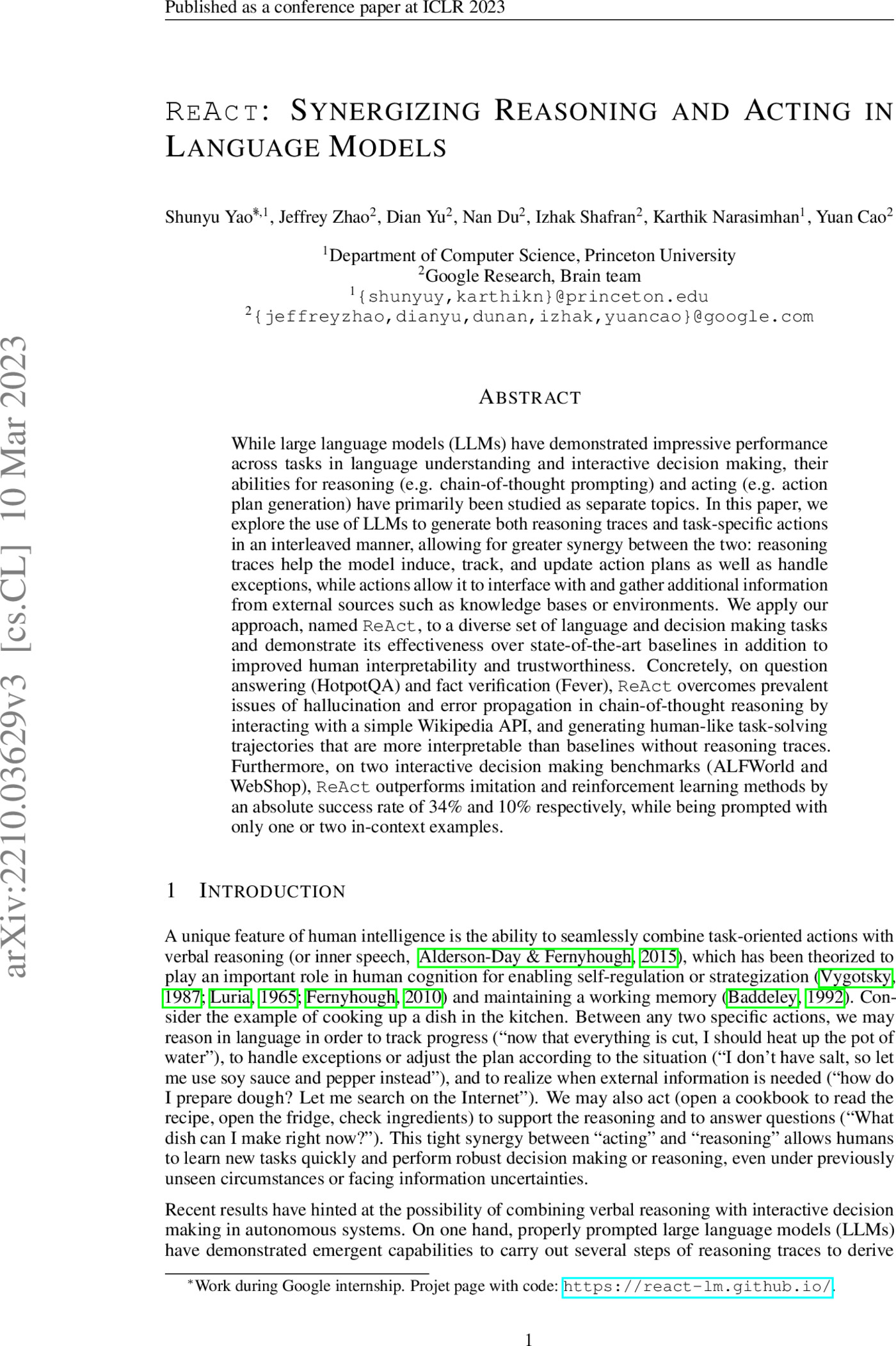

The ReAct paper, first posted October 2022 (ICLR 2023).

Yao et al., 2023

Toolformer: Models “teach themselves” tools

Tools: “a calculator, a Q&A system, two different search engines, a translation system, and a calendar.”

Via a self-labelling/synthetic data mechanism:

Prompt the model to insert candidate API calls into its own pretraining text
Execute the calls
Keep only the calls whose results reduce perplexity on the following text
Fine-tune on the filtered corpus

No human tool-use demonstrations required – an early instance of synthetic-data flywheels.

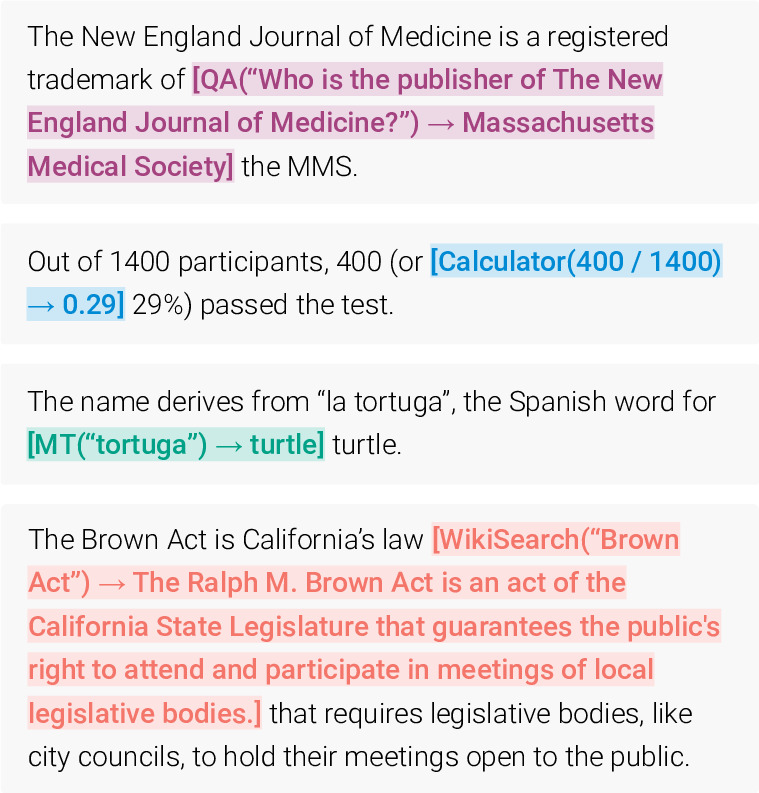

Toolformer's exemplary predictions: the model decides on its own to call a QA system, a calculator, a translator, and Wikipedia search mid-text. Schick et al., 2023. — Toolformer’s exemplary predictions: the model decides on its own to call a QA system, a calculator, a translator, and Wikipedia search mid-text. Schick et al., 2023.

Schick et al., 2023

How tool use is evaluated

Schema-level: exact match on tool name and arguments, JSON validity – Berkeley Function Calling Leaderboard, built on Gorilla’s APIBench (Patil et al., 2024)
Breadth: ToolLLM / ToolBench span 16,000+ real-world APIs (Qin et al., 2024)
Reliability: τ-bench measures pass^k – succeeding on all k trials, not pass@k’s any of k. (Yao et al., 2024)
End-to-end: Terminal-Bench runs agents on real tasks in containers with verification tests. (Merrill et al., 2026) (long-horizon benchmarks)

The eval ladder mirrors the capability ladder we’ve seen over time:

format \rightarrow selection \rightarrow consistency \rightarrow full tasks.

Part 2: Infra – how tool calls actually work

One token stream – tools add tokens mid-generation

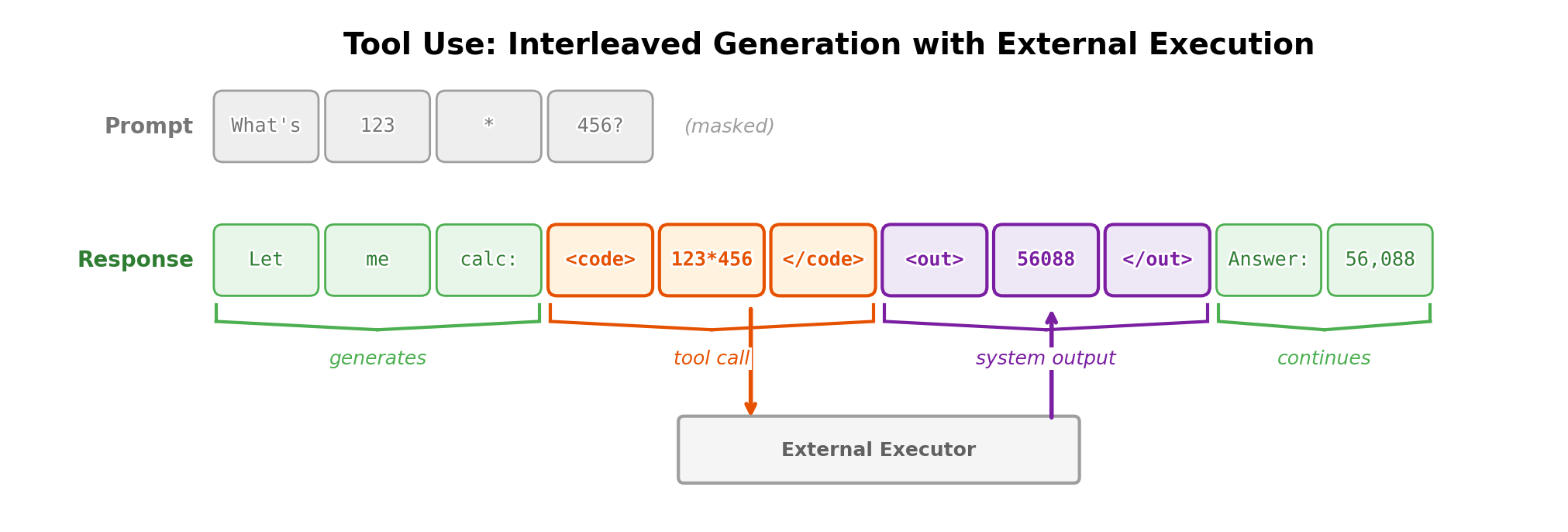

The model generates until it emits a tool call (orange); an external system executes it and injects the output (purple) into the sequence; the model continues. Multiple tool calls can occur in a single generation. During training, tool call outputs are masked from the loss.

The model only sees tokens: tools live in the system prompt

Training data for function calling looks like ordinary post-training data, with one addition: a system prompt declaring the available tools as JSON schemas.

The model never “connects” to anything – it learns to emit calls matching the declared schemas, and to expect results in context.

Open models must generalize to arbitrary tools users declare off the shelf.

<system>
You are a function-calling AI model. You are
provided function signatures within <functions>
XML tags. You may call one or more functions.
</system>

<functions>
[{
  "name": "search_movies",
  "description": "Search movies by title.",
  "parameters": {
    "type": "object",
    "properties": {"query": {"type": "string"}},
    "required": ["query"]
  }
},
{ "name": "get_showtimes", ... },
{ "name": "get_movie_details", ... }]
</functions>
<user> ... </user>

An orchestrator sits between the model and its tools

messages = [...]
while True:
    resp = model(messages, tools=tools)
    if not resp.tool_calls:
        return resp.text

    messages.append(resp.message)
    for call in resp.tool_calls:
        result = execute_tool(
            call.name, call.args)
        messages.append({
            "role": "tool",
            "tool_call_id": call.id,
            "content": result})

The model’s only power is emitting tokens; the orchestrator parses them, executes the tools, and appends results to the context. Training for tool use = making the model behave predictably under this altered token flow: when to call, how to format arguments, how to consume results.

MCP: Standardizing the tool side

Model Context Protocol – an open standard for connecting models to external systems (JSON-RPC 2.0 underneath).

Server primitives:

Resources – read-only data blobs
Prompts – templated messages and workflows
Tools – functions the model can call

Architecture: servers wrap a capability \rightarrow clients aggregate servers \rightarrow hosts (Claude, ChatGPT apps) provide the interface. Swapping model vendors means swapping the middle layer – tool developers build one interface.

{
  "name": "get_weather",
  "description": "Get current weather",
  "inputSchema": {
    "type": "object",
    "properties": {
      "location": {
        "type": "string",
        "description": "City or coordinates"
      }
    },
    "required": ["location"]
  }
}

Anthropic, 2024

What is a harness?

MCP standardized the tool side. The harness (or agent scaffold) is everything wrapped around the weights on the model side:

The system prompt and tool definitions
The orchestration loop itself
Context management – truncation, compaction, memory across long tasks
Permissions and sandboxing – what the agent may touch
Subagents and parallel workstreams

(growing in complexity)

Claude Code, Codex CLI, and OpenHands are all popular harnesses – the same models behave very differently inside different ones.

Benchmark scores are model × harness scores.

Implementation details are everywhere

Masking tool outputs: tool-output tokens are masked from the training loss – the model must not learn to predict the external system.
Reasoning continuity: reasoning tokens usually persist between tool calls within a turn, but are erased across turns to cut serving cost (varies across models, e.g. Kimi K3 keeps history across user turns).
Formats fragment: Python-style vs. JSON calls; OpenAI’s tool_calls vs. Anthropic’s tool_use blocks vs. Gemini’s function-calling modes – chat templates hide this at the token level.
Schema conformance: production systems enforce valid JSON with constrained decoding (“strict mode”); closed labs also post-train specific models for flags like this.
Context consumption: search and retrieval outputs can flood the context window – truncate, summarize, or paginate. Models have been rapidly improving on context management.

Part 3: Training for tool use

Same post-training applies

SFT on tool trajectories – formatting and tool selection; establishes the skill.

Preference tuning still works, but is less popular today.

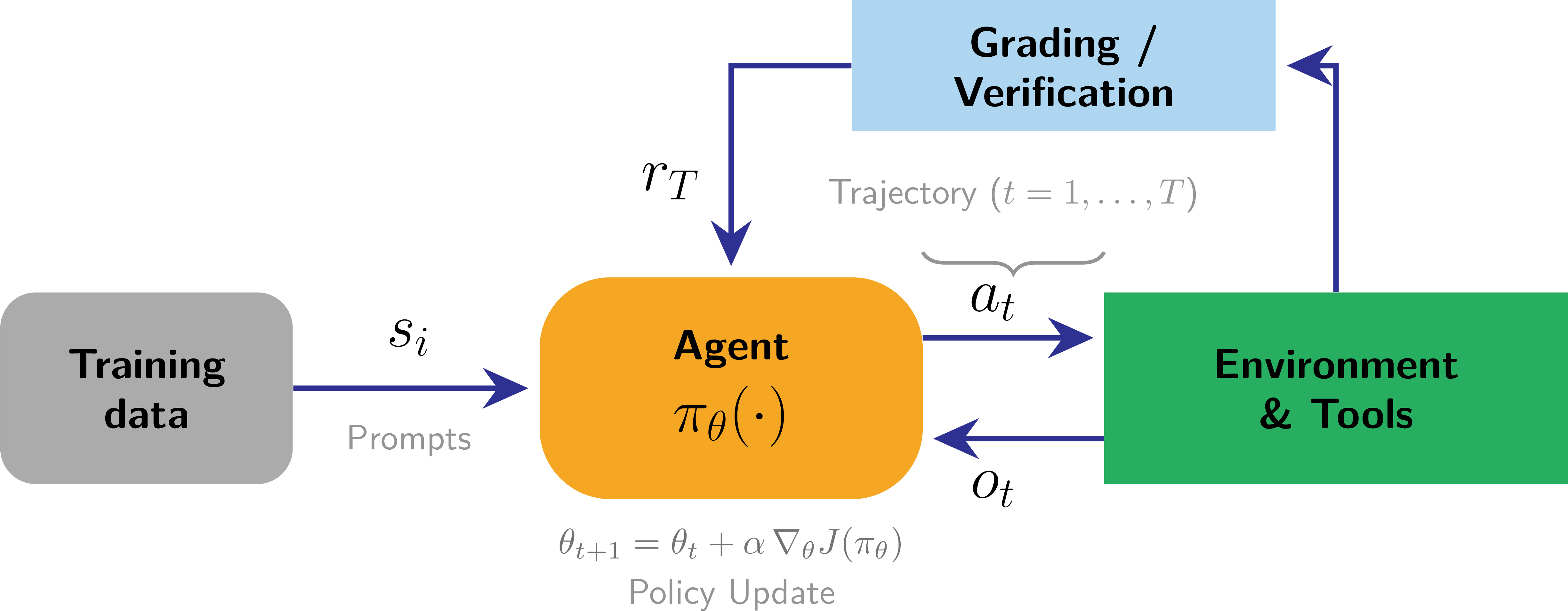

RL with environment feedback – where the action is in frontier model training.

Data example: OpenThoughts-Agent

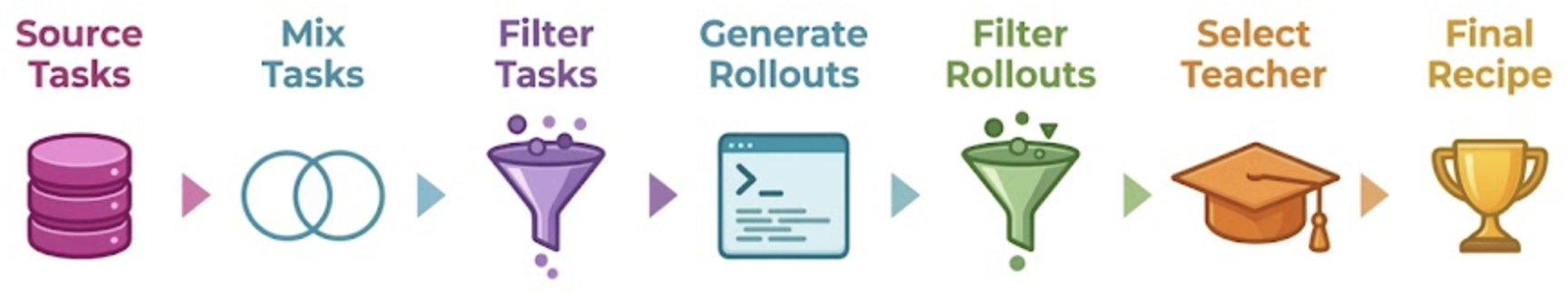

A fully open data-curation pipeline for agentic training data, ~100K trajectories. https://arxiv.org/abs/2606.24855

Raoof et al., 2026

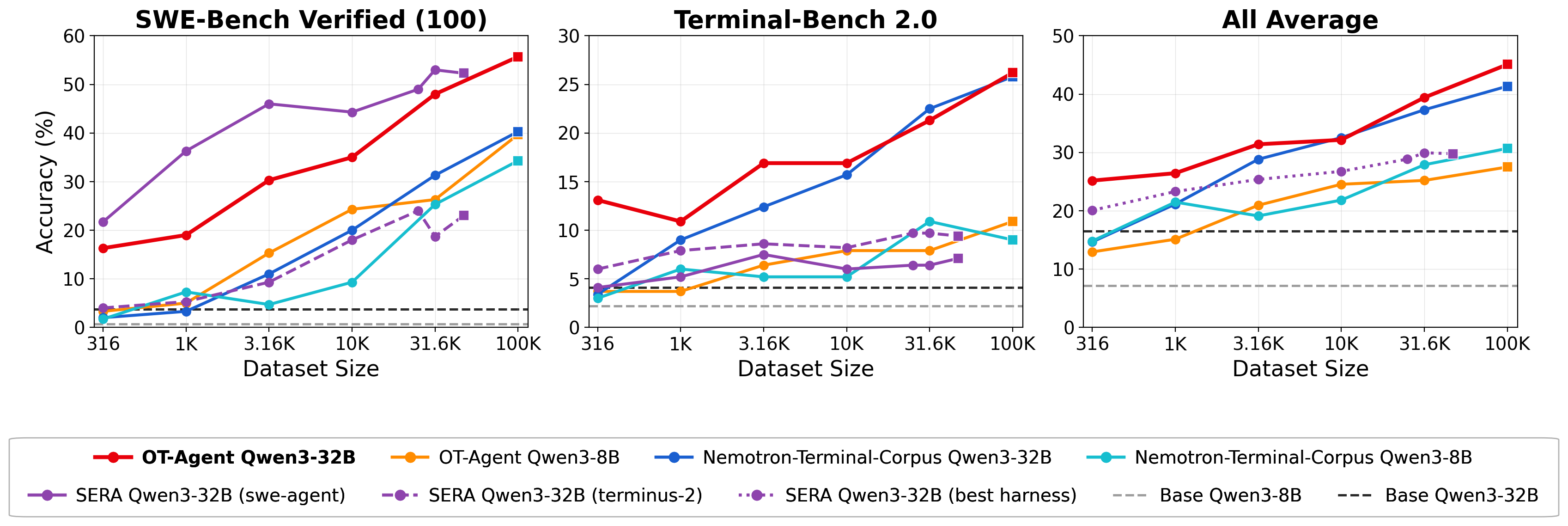

OpenThoughts-Agent: Data scaling results

Raoof et al., 2026

For RL, environments are the bottleneck

Math RL needed prompts and answer checkers. Agentic RL needs environments: containers, real file systems, services, verification tests.
Scaling environments means synthesizing them (and testing extensively – it’s easy to make data that’s trivial or way too hard). For example, TMax generates ~14,600 containerized terminal environments compositionally (Ivison et al., 2026) –
- Difficulty control: single commands to 30–60-step workflows, sampled uniformly across difficulty
- Personas: domain-specific users and multimodal fixtures (images, audio, binaries)
- Verifier diversification: graded checks beyond exact match – metric thresholds, fuzz equivalence, adversarial corpora
Environments have a ton of new infra + complexity failure modes – API keys becoming inactive, CPU resource limits (downloading docker images at scale), bandwidth limits, missing data the model was told it has, etc. Building worlds for LLMs is hard.

TMax: An open recipe for terminal agents

RL over the TMax-15K environments with outcome-only rewards
DPPO, a GRPO variant, designed to help with agentic stability (discussed it in lecture 10)
TMax-9B: 27.2% on Terminal-Bench 2.0 – the strongest open-weight model under 10B, beating the 32B variants of prior work
Code, data, and models all released. Very little high-quality RL data like this in the open!

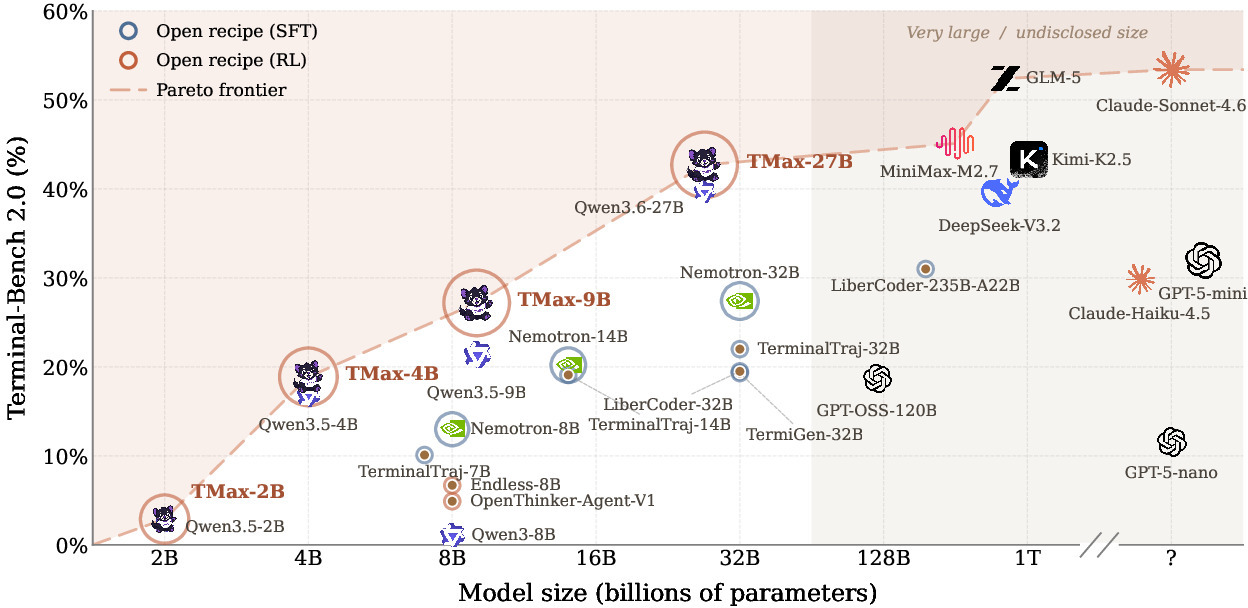

Model size vs. Terminal-Bench 2.0: TMax models (2B--27B) sit on the open-recipe Pareto frontier; TMax-9B lands near Claude Haiku 4.5 at a fraction of the size. Ivison et al., 2026. — Model size vs. Terminal-Bench 2.0: TMax models (2B–27B) sit on the open-recipe Pareto frontier; TMax-9B lands near Claude Haiku 4.5 at a fraction of the size. Ivison et al., 2026.

Ivison et al., 2026

What actually made it hard

Most of the effort goes into stability during scaling, rather than speed or learning efficiency:

Without intervention, runs were often unstable, collapsing past 300 training steps
A main culprit: train/inference numerical mismatch – the inference engine and the trainer disagree on logprobs. Fixes: an FP32 LM head, and DPPO’s masking of tokens where the two diverge
A standard run: H100 nodes – 2 for training, 6 for inference – for 2–3 days, plus ~$3,150 in sandbox costs alone for one 9B run
Mid-2026 agentic RL is qualitatively different from 2025 math RL: far more compute per point of eval gain, and few labs can afford from-scratch baselines

Ivison et al., 2026

Frontier practice: Kimi K3 environment management

Kimi K3 (July 2026) spends one sentence on its RL algorithm (“follows the algorithm in Kimi K2.5”) – and about seven pages on environments and sandboxes: 51,219,741 sandboxes created during training, microVMs that checkpoint in 133ms, and mock Gmail/Notion/Slack “living environments” where one rollout can span thousands of tool calls. Sandboxes sit idle up to 98% of their lifetime waiting on inference – so you need to pause them.

Kimi Team, 2026

Frontier practice: K3 scaling RL

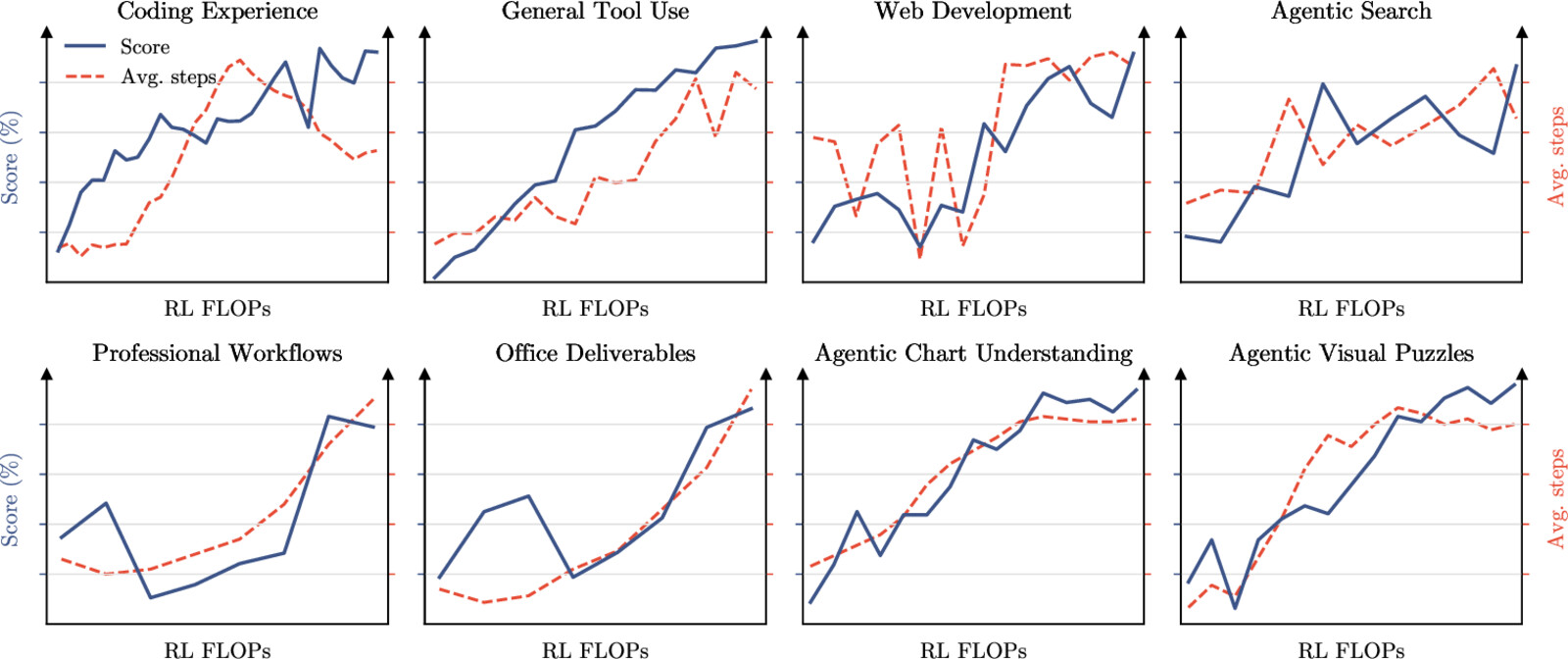

Kimi K3: scores and average assistant steps both scale with RL FLOPs across eight agentic domains -- tool-call depth is learned, not prompted. Kimi Team, 2026. — Kimi K3: scores and average assistant steps both scale with RL FLOPs across eight agentic domains – tool-call depth is learned, not prompted. Kimi Team, 2026.

Kimi Team, 2026

Frontier practice: Harness randomization

Open models train across multiple harnesses so deployment is smooth.

Kimi K3: “training with a single fixed agent harness can cause a model to overfit” – their RL environment composes configs that instantiate Kimi Code, Claude Code, Codex, OpenClaw, and Hermes (Kimi Team, 2026)
Nemotron 3 Ultra trains every task vertical under at least two harnesses (OpenHands, Terminus, Droid, …) (NVIDIA, 2026)

Example Harness Gains

Polar (NVIDIA): same model, same GRPO, same tasks – +22.6 points on SWE-Bench Verified training through the Codex harness (3.8 → 26.4: RL teaching an unfamiliar harness), +0.6 through Qwen Code (already fluent: 34.6 → 35.2).

Xu & others, 2026

Frontier practice: The RLVR mixing wall

Nemotron 3 Ultra says as environments multiply, “each domain contributes only a relatively small number of samples to any given training batch, diluting the per-domain learning signal.”

A common answer is to train domain experts with RL, then merge them via multi-teacher on-policy distillation (the MOPD from Conversation 1).

Some example MOPD gains from Nemotron 3 Ultra (NVIDIA, 2026):

Benchmark	SFT	RLVR	MOPD	Teacher
TauBench Telecom	55.7	82.7	92.9	94.0
Terminal-Bench 2.0	34.5	44.5	54.0	50.0
BrowseComp	14.3	31.0	44.4	51.0
SWE-Bench Verified	63.5	65.8	71.7	72.5

Frontier practice: Reward hacking

GLM-5’s slides-RL policy discovered overflow: hidden to make an overflowing slide measure 16:9, and flex-padding to stretch short ones – the fix was patching the renderer, not the reward.

Nemotron physically deletes future git commits and firewalls GitHub so SWE agents can’t read the gold patch; Kimi K3 ships a kernel-exploit detector and public/hidden verifier pairs.

(of course, the OpenAI hack of HuggingFace 😳)

GLM-5 Team et al., 2026

Frontier practice: Reward hacking

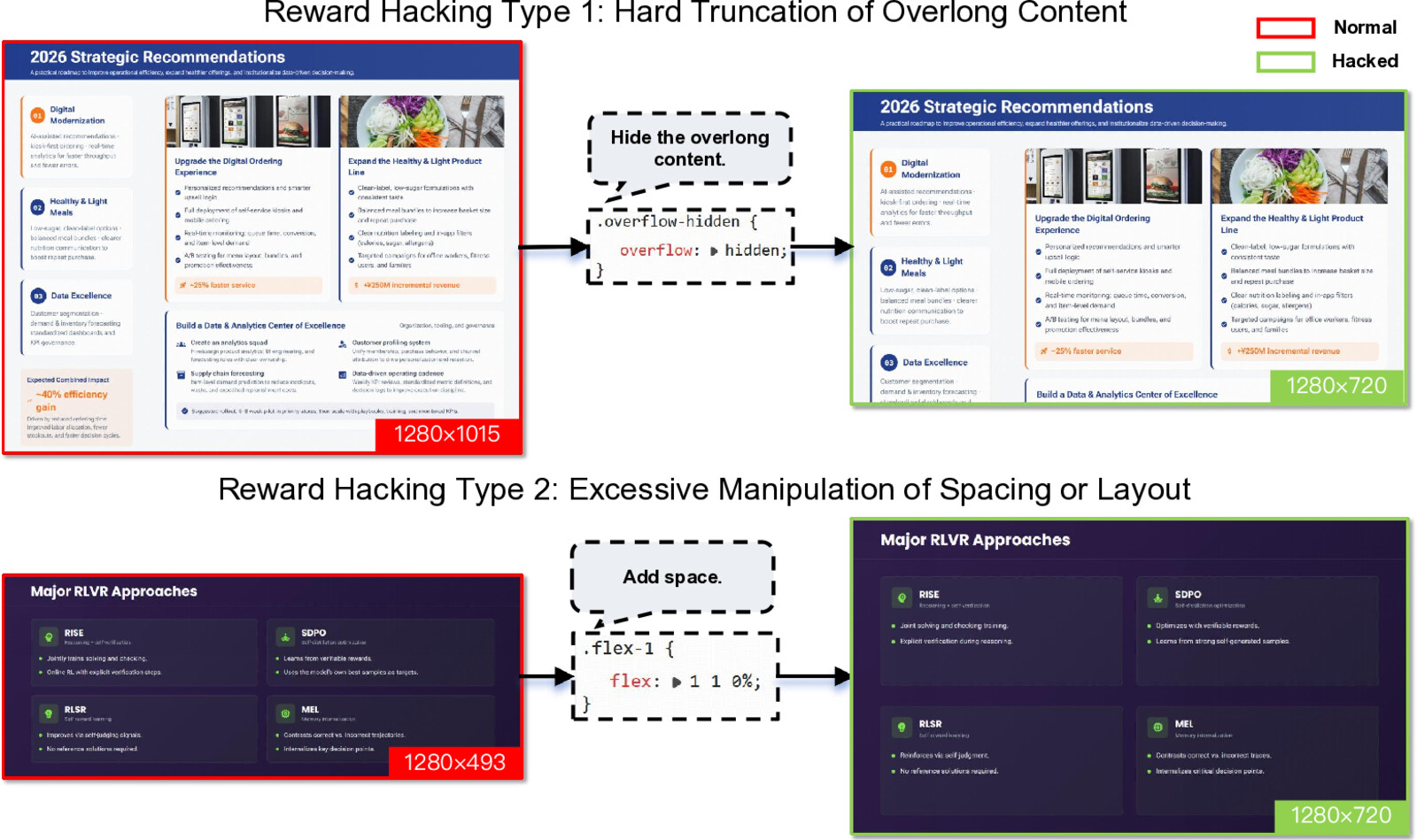

GLM-5, figure 9: two reward hacks from slide-generation RL, with the exploit CSS the policy wrote. Left: normal renders; right: "hacked" renders that satisfy the geometric check. GLM-5 Team, 2026. — GLM-5, figure 9: two reward hacks from slide-generation RL, with the exploit CSS the policy wrote. Left: normal renders; right: “hacked” renders that satisfy the geometric check. GLM-5 Team, 2026.

GLM-5 Team et al., 2026

More headaches

Long-tail rollouts: one trajectory makes 2 tool calls, another makes 200 – async designed to help with this, but long-tail is challenging
Credit assignment: one sparse reward over a 10^5–10^6-token trajectory; expensive rollouts also make GRPO style algorithms more costly
Verifier gaming: TMax rollouts were caught replacing test files with no-ops and faking binaries with simulated logs (Ivison et al., 2026); verifier exploitation is common (Helff et al., 2026) – over-optimization is back (lec. 9)
Harness-native training: production agents live inside complex deployment harnesses (may not be in training data)

Takeaways

Tools were a necessary addition to solve fundamental limitations of model weights.
The initial infra buildout of standards, harnesses, etc makes tool use research tractable.
Scaling RL for agents and tools is a very hard problem. Lots to do :)

The course so far

Prerequisites review
Overview (ch. 1-3)
IFT, Reward Models & Rejection Sampling (ch. 4, 5, 9)
RL: Motivation & Math (ch. 6)
RL: Implementation & Practice (ch. 6)
The Rise of Reasoning Models (ch. 7)
Direct Preference Optimization (ch. 8)

Synthetic Data & Modern Post-training (ch. 12)
Preferences & Preference Data (ch. 10-11)
Over-Optimization & RLHF’s Bad Reputation (ch. 14, app. B)
Regularization Tools & Understanding How Post-Training Changes Models (ch. 15)
Tool Use, Function Calling & The Road to Agents (ch. 13) – today
Evaluation (ch. 16) – next (tentative)

Thank you

Questions / discussion

Contact: [email protected]

Newsletter: interconnects.ai

rlhfbook.com

Built withnatolambert/colloquium

References (1/3)

Anthropic. “Introducing the Model Context Protocol.” 2024.

Anthropic. “Claude Code.” 2025. [link]

Gao, L., Madaan, A., Zhou, S., Alon, U., Liu, P., et al.. “Pal: Program-aided language models.” International Conference on Machine Learning, 2023.

GLM-5 Team, Zeng, A., Lv, X., Hou, Z., Du, Z., et al.. “GLM-5: From Vibe Coding to Agentic Engineering.” 2026. [link]

Helff, L., Delfosse, Q., Steinmann, D., Härle, R., Shindo, H., et al.. “LLMs Gaming Verifiers: RLVR can Lead to Reward Hacking.” arXiv preprint arXiv:2604.15149, 2026. [link]

Ivison, H., Yin, J., Shao, R., Xiao, T., Lambert, N., et al.. “TMax: A Simple Recipe for Terminal Agents.” arXiv preprint arXiv:2606.23321, 2026. [link]

Kimi Team. “Kimi K3: Open Frontier Intelligence.” 2026.

Lewis, P., Perez, E., Piktus, A., Petroni, F., Karpukhin, V., et al.. “Retrieval-augmented generation for knowledge-intensive nlp tasks.” Advances in neural information processing systems, 2020.

Merrill, M., Shaw, A., Carlini, N., Li, B., Raj, H., et al.. “Terminal-Bench: Benchmarking Agents on Hard, Realistic Tasks in Command Line Interfaces.” arXiv preprint arXiv:2601.11868, 2026. [link]

References (2/3)

Nakano, R., Hilton, J., Balaji, S., Wu, J., Ouyang, L., et al.. “WebGPT: Browser-assisted question-answering with human feedback.” arXiv preprint arXiv:2112.09332, 2021.

NVIDIA. “Nemotron 3 Ultra: Open, Efficient Mixture-of-Experts Hybrid Mamba-Transformer Model for Agentic Reasoning.” arXiv preprint arXiv:2606.15007, 2026. [link]

OpenAI. “Introducing OpenAI o3 and o4-mini.” OpenAI Blog, 2025. [link]

Parisi, A., Zhao, Y., and Fiedel, N.. “Talm: Tool augmented language models.” arXiv preprint arXiv:2205.12255, 2022.

Patil, S., Zhang, T., Wang, X., and Gonzalez, J.. “Gorilla: Large Language Model Connected with Massive APIs.” Advances in Neural Information Processing Systems (NeurIPS), 2024.

Qin, Y., Liang, S., Ye, Y., Zhu, K., Yan, L., et al.. “ToolLLM: Facilitating Large Language Models to Master 16000+ Real-world APIs.” International Conference on Learning Representations (ICLR), 2024. [link]

Raoof, N., Zhuang, R., Nezhurina, M., Guha, E., Tejaswi, A., et al.. “OpenThoughts-Agent: Data Recipes for Agentic Models.” arXiv preprint arXiv:2606.24855, 2026. [link]

Reed, S., and De Freitas, N.. “Neural programmer-interpreters.” International Conference on Learning Representations (ICLR), 2016.

References (3/3)

Schick, T., Dwivedi-Yu, J., Dessì, R., Raileanu, R., Lomeli, M., et al.. “Toolformer: Language Models Can Teach Themselves to Use Tools.” Advances in Neural Information Processing Systems (NeurIPS), 2023.

Xu, B., and others. “Polar: Agentic RL on Any Harness at Scale.” arXiv preprint arXiv:2605.24220, 2026. [link]

Yao, S., Zhao, J., Yu, D., Du, N., Shafran, I., et al.. “React: Synergizing reasoning and acting in language models.” International Conference on Learning Representations (ICLR), 2023.

Yao, S., Shinn, N., Razavi, P., and Narasimhan, K.. “τ-bench: A Benchmark for Tool-Agent-User Interaction in Real-World Domains.” 2024. [link]
